product overview

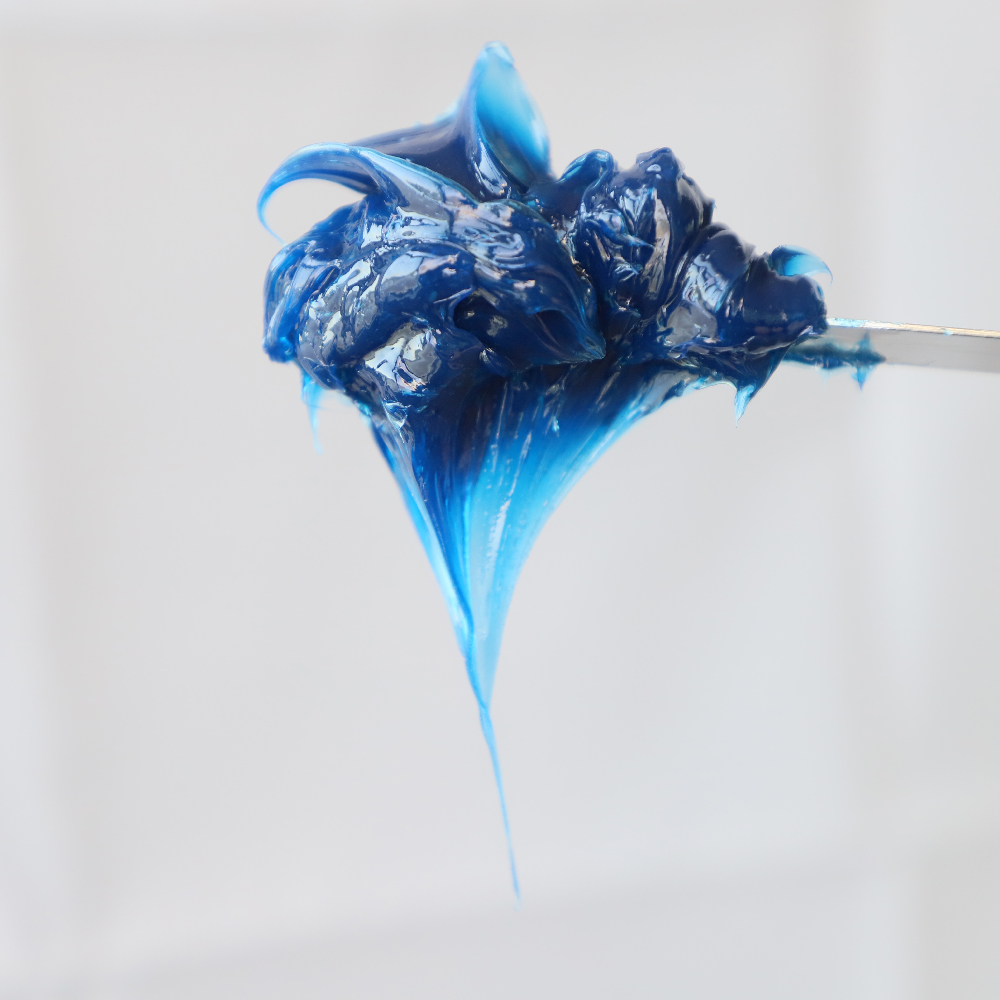

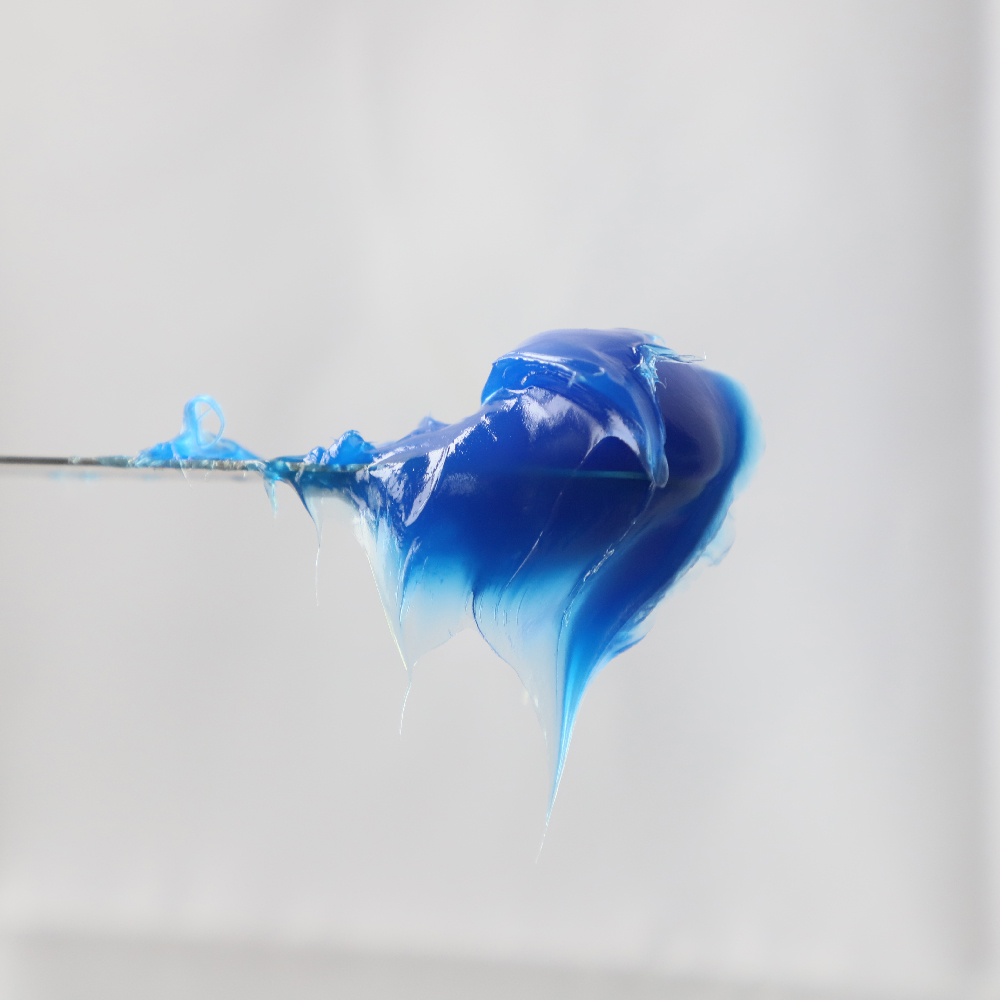

General purpose complex lithium grease is made by thickening high viscosity base oil with fatty aciolithium soap and adding antioxidant, anti-rust and other additives, which is a multi-effect and long-life grease.
performance characteristic
Composite thickening technology, with excellent mechanical stability, structural stability, use is not easy to become thin and loss.
Excellent lubrication performance, high and low temperature performance and long service life.
lmported viscosifier has good adhesion to the metal surface.
Excellent anti-rust performance to prevent corrosion of the metal surface of friction pairs.
Recommended application
Suitable for lubrication of hub bearing, chassis, motor, water pump and other friction parts of medium and heavy duty vehicles.
Suitable for lubrication of sliding and rolling friction parts of various mechanical equipment.
Operating temperature: -20°C ~ 120°C.
Typical data
| Item |
Typical data |
Test method | ||
|
NLGI 1 |
NLGI 2 | NLGI 3 | ||
|
Appearance |
Smoothing cream |
visual | ||
|
Worked cone penetration，0.1mm |
315 | 270 | 228 | GB/T 269 |
|
dropping point，℃ |
253 | 260 | 268 | GB/T 3498 |
|
penetration change after 100,000 strokes，0.1mm |
9 | 10 | 12 | GB/T 269 |
|
carrying capacity (four ball method) PB value, N |
617 | 617 | 617 | SH/T 0202 |
|
carrying capacity(four ball method)PD value, N |
2450 | 2450 | 2450 | SH/T 0202 |
|
carrying capacity (Timken method) OK value,N |
156 | 156 | 156 | SH/T 0203 |
|
Anti-corrosion property(52℃,48h) |
Up to standard | GB/T 5018 | ||
|
Steel mesh oil separation（100℃，24H）% |
1.0 | 0.5 | 0.4 | SH/T 0324 |
|
Similar viscosity(-10°C,10s -1),Pa·s |
440 | 780 | 1100 | SH/T 0048 |
